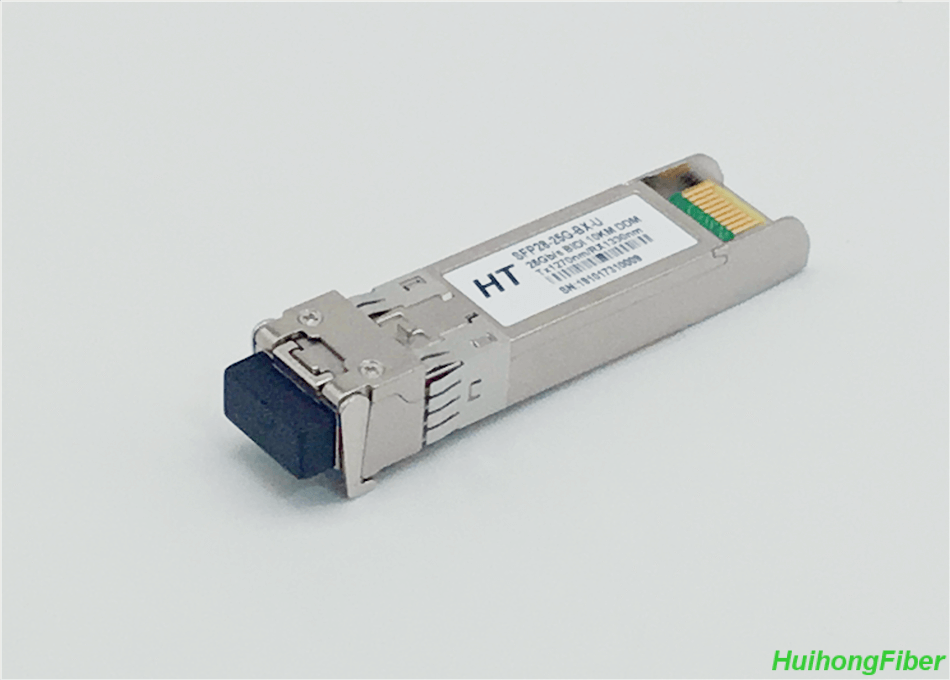

Cisco SFP-25GBX-U-10 Compatible 25GBASE-BX10-U SFP28 1270nm-TX/1330nm-RX 10km DOM Transceiver Module.With the rapid development of 3G and 4G wireless communication systems in recent years, the consumption of optical fiber resources in the forward section is becoming more and more serious, and on the eve of the large-scale deployment of 5G networks, the problem of lack of optical fiber resources has been paid more and more attention by major operators at home and abroad. The 25G SFP28 Bidi optical module uses two different central wavelength optical signals at the transmitter and receiver to realize the two-way transmission of optical signals on one optical fiber, in order to save optical fiber resources.
|Cisco Compatible||SFP-25GBX-U-10||Vendor Name||Huihongfiber|
|Form Type||SFP28||Max Data Rate||25Gbps|
|Wavelength||1270nm-TX/1330nm-RX||Max Cable Distance||10km|
|Interface||LC simplex||Optical Components||DFB BiDi|
|Cable Type||SMF||DOM Support||Yes|
|TX Power||-5~2dBm||Receiver Sensitivity||<-9dBm|
|Protocols||MSA Compliant||Commercial Temperature Range||0 to 70°C (32 to 158°F)|
