LX.5 Fiber Optic Patch Cables, LX5 Fiber Cables

LX.5 fiber optic patch cables use the 1.25mm ferrule technologies, in this way the LX.5 fiber connector is compact and as small size as the LC connectors. The LX5 fiber connector has a shutter over the end of optical fiber, the specification of LX-5 fiber cables and connectors are defined as per TIA connector intermate ability standard FOCIS-13 (TIA-604-13). the huihongfiber LX.5 units maintain single circuit access and integrate special shutters on both the connector and coupler body to protect them from dust, dirt, and ferrule end-face handling damage.

lx5 fiber cable

LX.5 fiber optic patch cables are generally used in CATV, Ethernet and other telecom networks, huihongfiber has the single mode and multimode LX.5 fiber patch cords, with UPC or APC polished connectors, fully compatible with the LX5 connection standards but save you much of the cost.

LX5 fiber optic patch cable features
Compliant with TIA/EIA 568-A & RoHS standards
Plug type, keying coupling structure
Strong interchangeability
Dust cap since closed
Squared has good mechanical and thermal properties to meet Telcordia GR – 326 – CORE.

LX.5 fiber patch cables specifications
PC (Single mode or Multimode) or APC (Single mode) polishing
Color of the housing & boot: blue, green or beige
Cable diameter: 2.0mm typically
Fiber type: 9/125um, 50/125um or 62.5/125um
Insertion loss: Less than 0.3dB
Operating temperature range: -20°c ~ 70°c
Storage temperature range: -40°c ~ 80°c
Color of the jacket: industrial standard or custom
Material of the jacket: PVC/OFNR, LSZH or customized

fiber optic oem factory

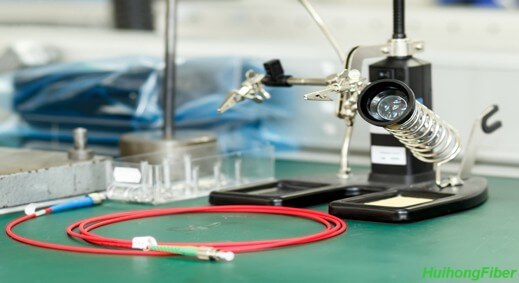

Advanced Factory Facilities

We have been developing our factory and keep the advanced manufacturing facilities, we have dust free workplaces and equipment that use the cutting-edge technologies. This is our first step to ensure quality.

worker

Professional and Skilled Workers

The professional engineers and skilled workers are our treasure, since our foundation in 1995, we have been working to improve the treatment of our employee, we are proud to have the highly professional and stable team.

test3

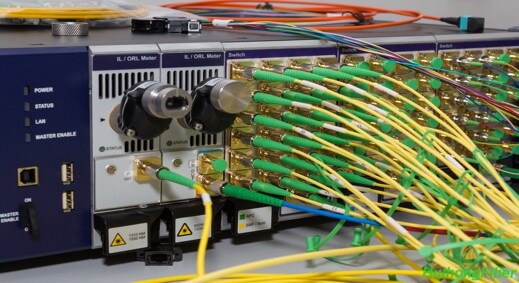

Modern Fiber Optic Test System

We have developed a complete workflow for the fiber optic products test, from raw materials, components, to the end products. Testing is throughout the pre-manufacturing stage, manufacturing stage and before delivery stage.

isoc

ISO Certified Manufacturer

We have passed the ISO inspection since our factory foundation, the certified products include MPO/MTP fiber patch cables, cassettes, patch panels, and also include our fiber optic transceivers and FTTH cables and equipment.

costd

Factory Price, Lowest Cost

MPO/MTP is one of our major products. By purchasing the MPO/MTP products from us, you get the lowest factory price, you can cut down the cost greatly compared with buying from traders and online stores.

delivery

Fast Delivery from Direct Manufacturer

We have fast delivery of the standard MPO/MTP cables and closures, even if you need special custom cables, we are able to provide you with a quick design and help you get the best solution for your MPO/MTP requirement.
