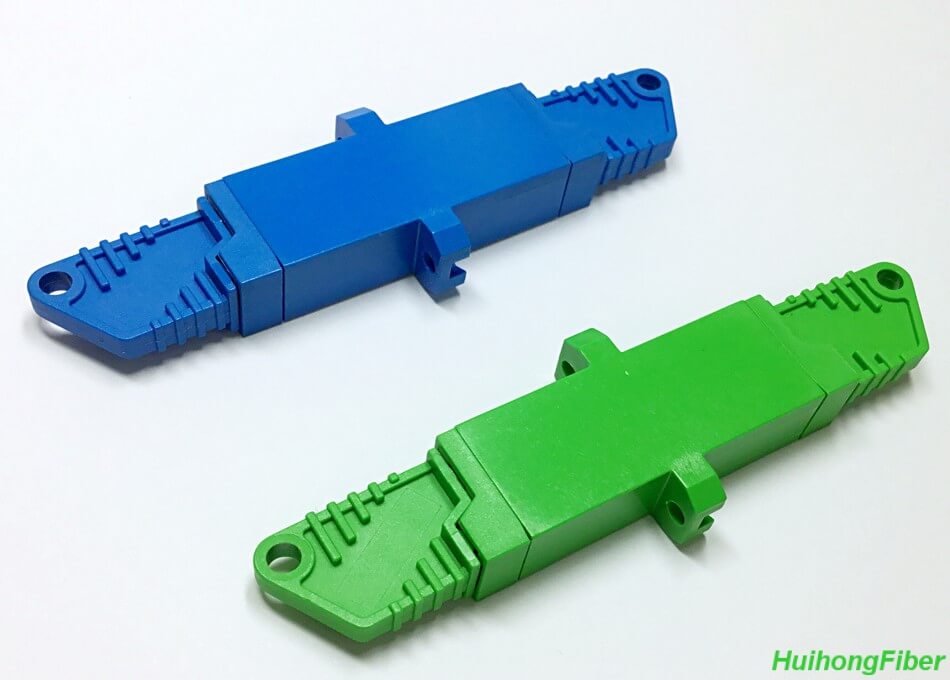

Generic E-2000 Fiber Optic Adapters

Generic E-2000 fiber optic adapters are designed to link the E-2000 cables and components, the E-2000 fiber adapters include the E-2000 single mode UPC, E-2000 Single mode APC and E-2000 multimode UPC, by default they are blue (SM UPC), green (SM, APC) and beige (multimode) colors. the generic E-2000 is fully compatible and equivalent to the E2000 from suppliers like Reichle & De-Massari and Diamond SA while the generic E-2000 adapters are very low price to save cost for your project. Generic E-2000 fiber adapters are ideal to use in WAN, LAN, CATV, Metrology and industrial areas where precision and low loss fiber connection is needed.

Insertion Loss (IL) typ. 0.2 max 0.4 Return Loss (RL) min 50
Repeatability of IL max ±0.1 Service life 1000 mate/demate cycles
Insertion Loss (IL) typ. 0.2 max 0.4 Return Loss (RL) min 70
Repeatability of IL max ±0.1 Service life 1000 mate/demate cycles
Insertion Loss (IL) typ. 0.2 max 0.4 Return Loss (RL) Typ 40
Repeatability of IL max ±0.1 Service life 1000 mate/demate cycles
    E-2000 Fiber Optic Adapters Features:

  • Perfectly match the E-2000 family fiber optic connectors and cables
  • Secure signal transmission at high rate
  • Fully Compliant to international standards and specs, IEC 61754-15/EN 186270
  • Factory tested and approved quality with competitive prices
