ODC fiber optic patch cables are used in FTTA harsh environment. In response to the requirements of the mobile communications market for investment savings, as well as the increasing difficulty of mobile operators to locate the location network, major communication manufacturers have introduced fiber optic instead coaxial feeder program, from GSM to WCDMA, TD-SCDMA, to WIMAX, Almost all mobile communication systems have realized the implementation of fiber optic pull-out scheme in wireless base stations.

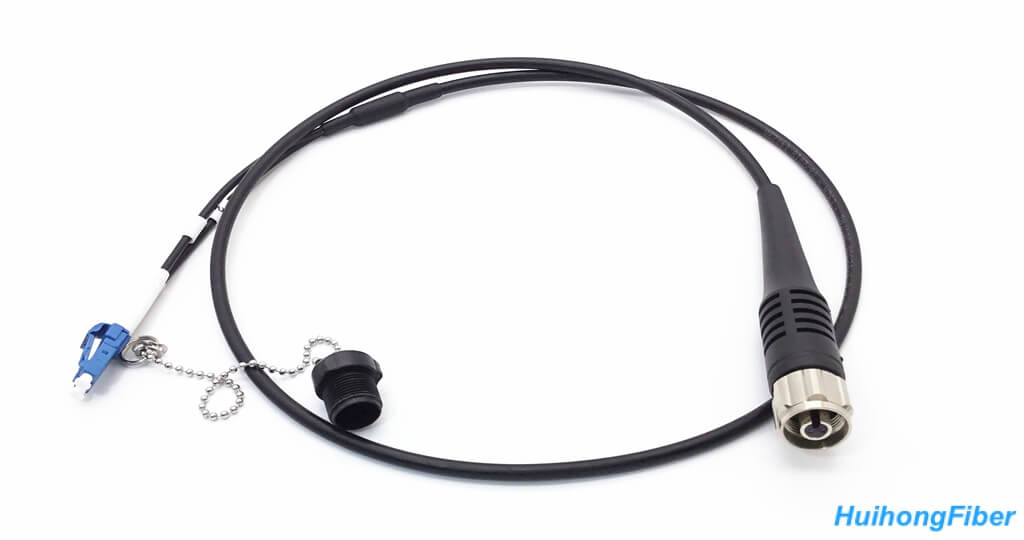

2F ODC Plug
one side of the cable is 2 cores ODC plug, the other side is 2 core breakout SC/FC/ST/LC optional.
2F ODC Socket
one side of the cable is 2 cores ODC socket, the other side is 2 core breakout SC/FC/ST/LC optional.
4F ODC Plug
one side of the cable is 4 cores ODC plug, the other side is 4 cores breakout SC/FC/ST/LC optional.
4F ODC Socket
one side of the cable is 4 cores ODC plug, the other side is 4 cores breakout SC/FC/ST/LC optional.
Insertion Loss | <=0.8dB |
Repeatability | <=0.5dB |
Fiber Core | 2 or 4 |
Mating times | >=500N |
Working temperature | -40 ~ +85℃ |
- Tighten the locking mechanism to confirm long-term reliable connection.
- Guided structure can be blind, simple, fast installation. Closed structure: waterproof, dust-proof, corrosion-resistant.
Protective cap. - Compact, robust and flexible.
- Wall-sealed design. Reduce the number of stitches.
ODC fiber optic cables are tailored to the new generation of fiber-optic pull-far wireless base stations (WCDMA/TD-SCDMA/WiMAX/GSM) to meet the needs of FTTA (fiber-to-tower) solutions, suitable for outdoor environments, and withstand harsh environmental conditions and harsh climatic conditions.
ODC connector has ODC-2/ODC-4 models, using N-type connector mechanical interface, can be interchanged with the “N” type coaxial connector, that is, the original panel, taking into account the smoothness of product evolution. Multimode and single-mode fiber scanted. The product enables data transmission to achieve a minimum insertion loss under the premise of guaranteed high speed. Unique materials can achieve better electromagnetic pulse protection effect and anti-electromagnetic interference. Thread locking mechanism to ensure a safe and reliable connection, because the design has a guide pin, can be a one-handed blind plug simple and quick connection installation. Products to IP67 waterproof protection level, waterproof, dust protection and corrosion protection can be very suitable for outdoor use environment.
The ODC fiber optic patch cable assembly can be customized to different cable lengths and different connector combinations, and all standard fiber optic connectors (e.g. LC, SC, etc.) can be connected. Connectors are small components of a communication system, but connector performance can affect the entire communication system, so choosing the right connector and connector cable assembly is critical to the communication system.
ODC fiber optic patch cords and their connectors components are ideal for the next-generation wireless base stations of major communications vendors. ODC outdoor waterproof connector with thread locking mechanism to ensure a safe and reliable connection, design with guide pin, with one-handed blind plug simple and fast connection function. Waterproof, dust-proof and corrosion-resistant protection are well suited for outdoor use. The ODC light cable assembly can be customized to different cable lengths and different connector combinations, and all standard fiber optic connectors (e.g. LC, SC, etc.) can be connected. Cancel the fiber optic cable fuse, plug and play, shorten the construction period, save costs. ODC specifications are: 2 core, 4 cores. Mainly used in outdoor harsh environment fiber optic communication, remote communication base station, intelligent substation, military communications equipment, railway signal control, mine and other harsh environments.
